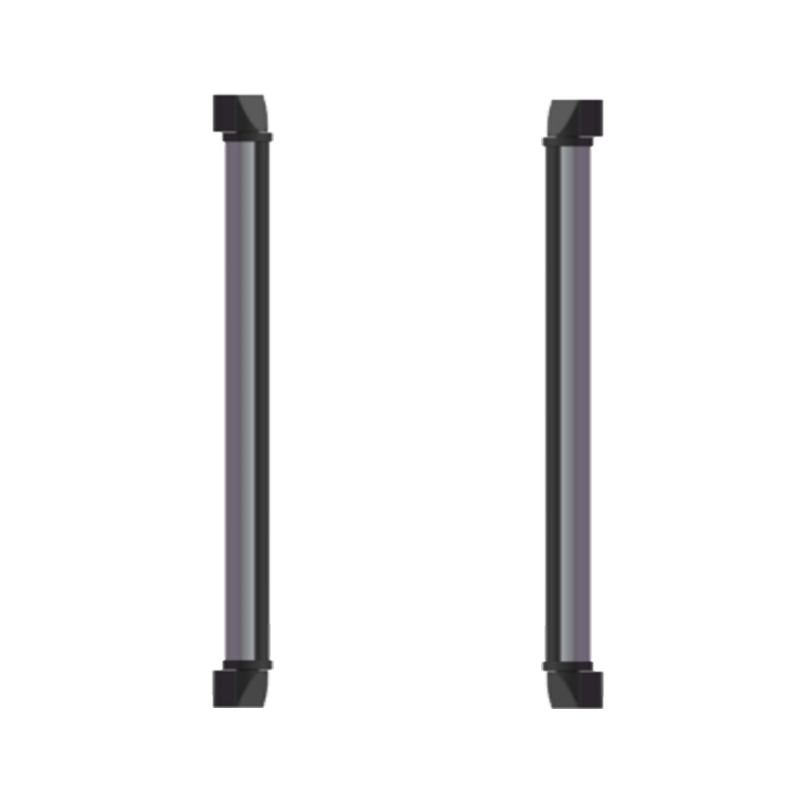

Commercial-Grade Infrared Barrier CG Series

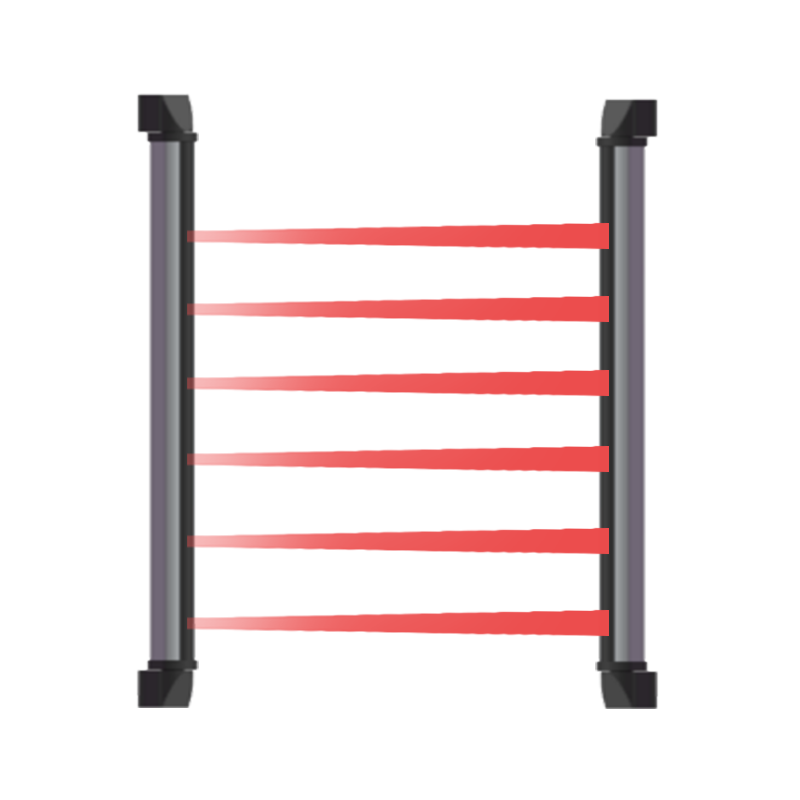

Consisting of a paired transmitter and receiver, the transmitter emits an infrared beam while the receiver detects the infrared beam emitted by the transmitter.When the infrared beam emitted by the transmitter is completely blocked, the receiver will generate an alarm signal due to the lack of incoming infrared light.

Download

Product Features

1

Equipped with a self-check function that uses a buzzer to alert users to operational status and faults
2

Audible alerts for various operational statuses, with a more intelligent user interface：

1) Product power on self-check prompt

2) Product alignment degree prompt

3) Product wiring error prompt

4) Product fault prompt

5) Area blocking prompt

6) Product alarm prompt
3

Providing a more intuitive user interface to enhance the convenience and accuracy of customer installation and maintenance

Product Parameters

Product Model	Outdoor Application Warning Distance (m)	Steady-State Operating Current (mA)	Working Voltage (V)	Triggering Time (ms)	Work Environment	Alarm Output
Product Model	Outdoor Application Warning Distance (m)	Steady-State Operating Current (mA)	Working Voltage (V)	Triggering Time (ms)	Work Environment	Alarm Output
CG-ID02A10L(S) W	2-10	Transmitter 20 Receiving 45	DC12-18V(recommended 12V)	≥40	Temperature：-30~ + 70℃; Humidity ≤95% RH (non-condensing).	Relay:1A at 24VDC
CG-ID02C30L(S) W	10-30
CG-ID02C60L(S) W	30-60
CG-ID02C100L(S) W	60-100
CG-ID04A10L(S)	2-10	Transmitter 40 Receiving 45
CG-ID04C30L(S)	10-30
CG-ID04C30L(S) A	10-30
CG-ID04C60L(S)	30-60
CG-ID04C60L(S) A	30-60
CG-ID04C100L(S)	60-100
CG-ID06A10L(S)	2-10	Transmitter 80 Receiving 50
CG-ID06C30L(S)	10-30
CG-ID06C30L(S) A	10-30
CG-ID06C60L(S)	30-60
CG-ID06C60L(S) A	30-60
CG-ID06C100L(S)	60-100
CG-ID08A10L(S)	2-10	Transmitter 105 Receiving 55
CG-ID08C30L(S)	10-30
CG-ID08C30L(S) A	10-30
CG-ID08C60L(S)	30-60
CG-ID08C60L(S) A	30-60
CG-ID08C100L(S)	60-100
CG-ID10A10L(S)	2-10	Transmitter 125 Receiving 55
CG-ID10C30L(S)	10-30
CG-ID10C30L(S) A	10-30
CG-ID10C60L(S)	30-60
CG-ID10C60L(S) A	30-60
CG-ID10C100L(S)	60-100
