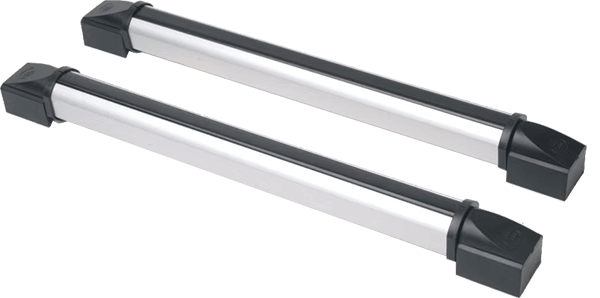

Professional-Grade Infrared Barrier PRO Series

Consisting of a paired transmitter and receiver, the transmitter emits an infrared beam while the receiver detects the infrared beam emitted by the transmitter. When the infrared beam emitted by the transmitter is completely blocked, the receiver will generate an alarm signal due to the lack of incoming infrared light.

Download

Product Features

1

Discreet defense method

Visually invisible protective beams trigger alarms without the intruder's awareness.
2

Comprehensive defense capability

Intruders cannot bypass the invisible security curtain beams by quickly jumping, crawling, or using other movements.
3

Excellent anti-interference characteristics
4

Zero false alarms

The alarm mode that requires blocking two adjacent beams simultaneously eliminates false alarms caused by birds, butterflies, leaves, and other objects passing through the protected area.
5

Stability

Unique software settings, specific component selection, and professional structural design eliminate strong light and electromagnetic interference.
6

Strick anti-tampering capability

If the invisible security curtain is manually moved, or if the power line to the transmitter, or the power or signal lines to the receiver are cut, the alarm signal output circuit will automatically trigger an alarm.
7

The most intelligent infrared security curtain

After securing the installation base, the transmission and reception of infrared beams can rotate 360 degrees smoothly for easy alignment and adjustment.
8

Fault detection audio alerts simplify installation and maintenance.

Product Parameters

Product Mode	`Outdoor Warning Distance (m)`	Steady-state Operating Current (mA)	Working Voltage (V)	Triggering Time (ms)	Operating Environment	Alarm Output


PRO-ID04C10	2~10 (m)	Receiving 45 、 Transmitting 40	DC 9-30 V‌ (Recommended: 12 V DC)	≥20‌ (Min. 2 beams blocked for 500ms)	Temperature: -30 °C to +70 °C Humidity: ‌≤95% RH‌ (Non-condensing)	Relay: 1 A / 24 V DC
PRO-ID04C30	10~30 (m)
PRO-ID04C30 A	10~30 (m)
PRO-ID04C60	30~60 (m)
PRO-ID04C60 A	30~60 (m)
PRO-ID04C100	60~100 (m)
PRO-ID06C10	2~10 (m)	Receiving 50、 Transmitting 80
PRO-ID06C30	10~30 (m)
PRO-ID06C30 A	10~30 (m)
PRO-ID06C60	30~60 (m)
PRO-ID06C60 A	30~60 (m)
PRO-ID06C100	60~100 (m)
PRO-ID08C10	2~10 (m)	Receiving 55 、 Transmitting 105
PRO-ID08C30	10~30 (m)
PRO-ID08C30 A	10~30 (m)
PRO-ID08C60	30~60 (m)
PRO-ID08C60 A	30~60 (m)
PRO-ID08C100	60~100 (m)
PRO-ID10C10	2~10 (m)	Receiving 55 、 Transmitting 125
PRO-ID10C30	10~30 (m)
PRO-ID10C30 A	10~30 (m)
PRO-ID10C60	30~60 (m)
PRO-ID10C60 A	30~60 (m)
PRO-ID10C100	60~100 (m)
