SBT series

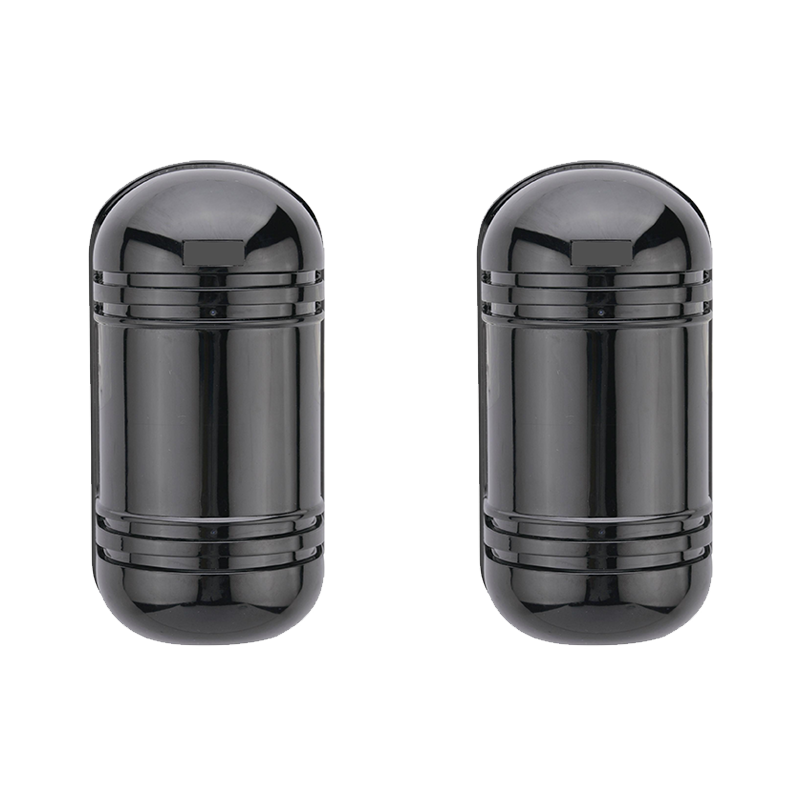

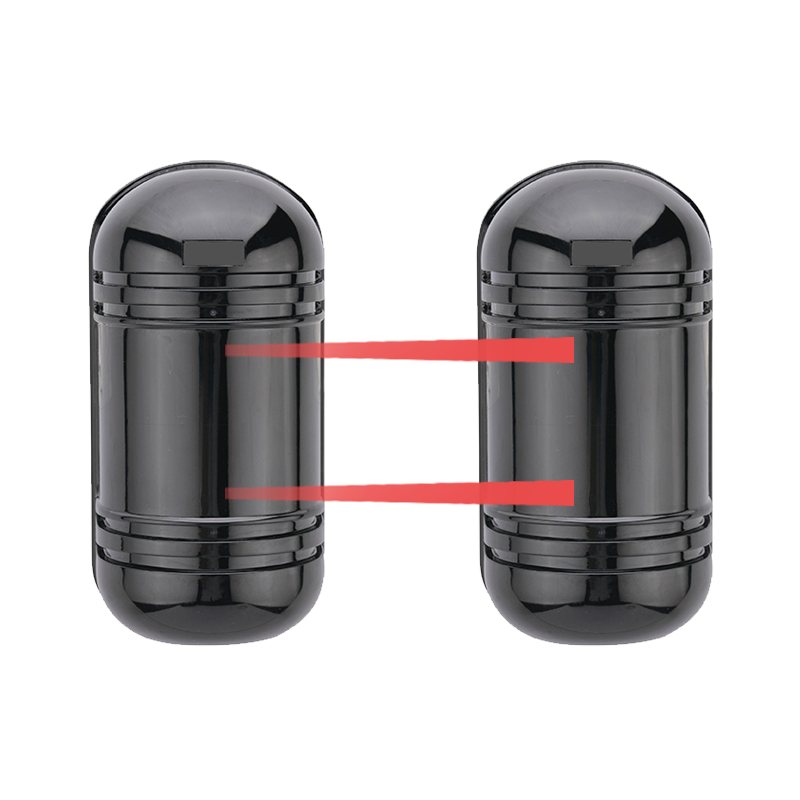

Consisting of a paired transmitter and receiver, the transmitter emits an infrared beam while the receiver detects the infrared beam emitted by the transmitter.When the infrared beam emitted by the transmitter is completely blocked, the receiver will generate an alarm signal due to the lack of incoming infrared light.

Download

Product Features

1

High Reliability, Greater Cost-Effectiveness
2

Utilizing High-Performance Infrared Transmitter/Receiver
3

A new diffused light filter housing that effectively eliminates stray light interference
4

Optimized circuit design ensures a high cost-performance
5

super strong lightning protection design, with easy and straightforward installation and debugging
6

Device status LED indication, easy installation and operation detection

Product Parameters

‌Model‌	‌SBT-30‌	‌SBT-60‌	‌SBT-80‌	‌SBT-100‌	‌SBT-150‌
Warning distanc	30m	60m	80m	100m	150m
Maximum beam distance	300m	600m	800m	1000m	1500m
Detection mode	Two beam infrared pulse signal, completely block the perception type
Induction speed	50-700ms (adjustable)
Supply voltage	DC 10.5～28V (no polarity), recommended 12V
Consumption of current	40mA	55mA	65mA	65mA	65mA
Horizontal optical axis adjustment	180° (±90°)
Vertical optical axis adjustment	20° (±10°)
Alarm output	Relay contact output 1c, NC/NO, rated AC,DC30V,0.5A MAX
Anti-demolition outpu	Contact output 1b, rated DC30V, 0.5 AMAX
Sight	Removing type
Service environment	-25℃ to + 55℃, less than RH 95%
Outline dimension	171mm × 82mm × 77mm (H × W × D)
Weight	Light tor 280g and light acceptor 300g

Dimension
