SBQ series

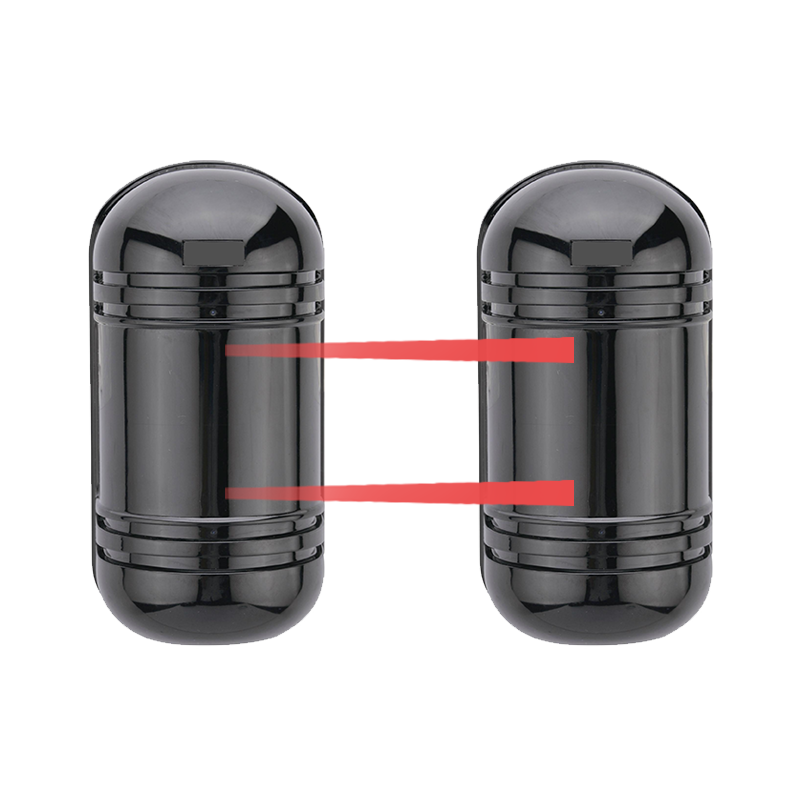

Consisting of a paired transmitter and receiver, the transmitter emits an infrared beam while the receiver detects the infrared beam emitted by the transmitter. When the infrared beam emitted by the transmitter is completely blocked, the receiver will generate an alarm signal due to the lack of incoming infrared light.

Download

Product Features

1

ASK Modulation, EDC monitoring circuit
2

Reliable four-beam detection mode
3

Anti-climbing design
4

The buzzer indicates the alignment state
5

Quick response, Multi-level alignment indication
6

Application: intelligent security, home appliances, lighting, doors, Windows

Product Parameters

Parameter	Numeric value
Outdoor multi-beam photoelectric sensor	Class C, normally closed relays
Modulation mode	ASK
Detection zone	75 m
Working temperature	-20 (-4°F) to +60 (140°F)℃
Relative humidity	35% to 95% (non-condensing) RH
Sheathing material	The shell is made of a high-strength black PC material
Adjust the Angle	±90°horizontal;±10°vertical
Power Supply Voltage	DC 10.5 to 28V
current	100 mA
Alarm output voltage	24V
Alarm output current	DC 500 mA
EDC output voltage	DC 30V
EDC output	DC 500 mA
Interference with output voltage	DC 30V
Interference with output current	500 mA
Alarm response time	35 to 500 ms adjustable
White light anti-interference	≥120,000 lux/m
