Unmanned Weighbridge System Solutions

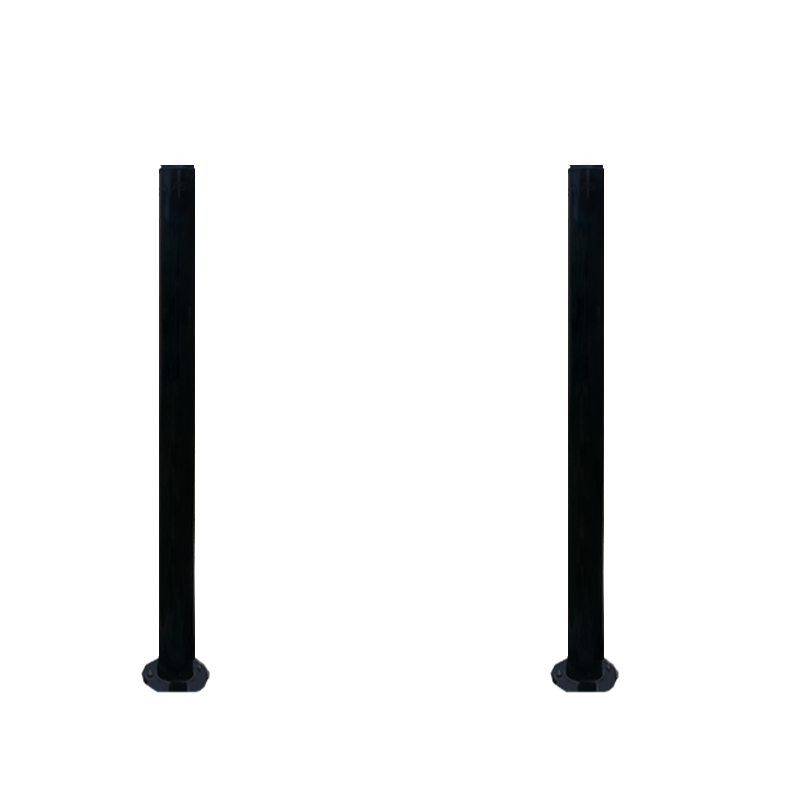

The infrared positioning system (anti-cheating device) prevents cheating risks caused by incomplete vehicle weighing or consecutive weigh-ins of following vehicles. The system automatically logs functional processes for tracking important operations.

Download

Product Features

1

It can be customized upon requeste
2

Easy Installation, The top cover is secured with a single screw, equipped with plug-and-play terminal blocks
3

Flexible Configuration, Two detectors can be mounted on a single internal support rod, oriented in different directions
4

The angle between detector ends is adjustable, and the detection height can be modified

Product Parameters

Housing stand bar height	1.5m; (Impact and Compression Resistance of the Housing)
Light Beam	6 Light beam
Detection distance	the maximum outdoor effective distance is 10 meters；
Response time	40ms;
Alarm Conditions	Simultaneous blockage of two adjacent beams (single beam blockage alarm can be customized)
Alarm output mode	relay (normally open, normally closed）
Wide power voltage power supply	9—35V
Fixed base	Stainless steel
Inner support rod	Aluminum alloy
